UHD Series

UHD0.9/UHD1.2/UHD1.5/UHD1.8/UHD2.5

VIDEO

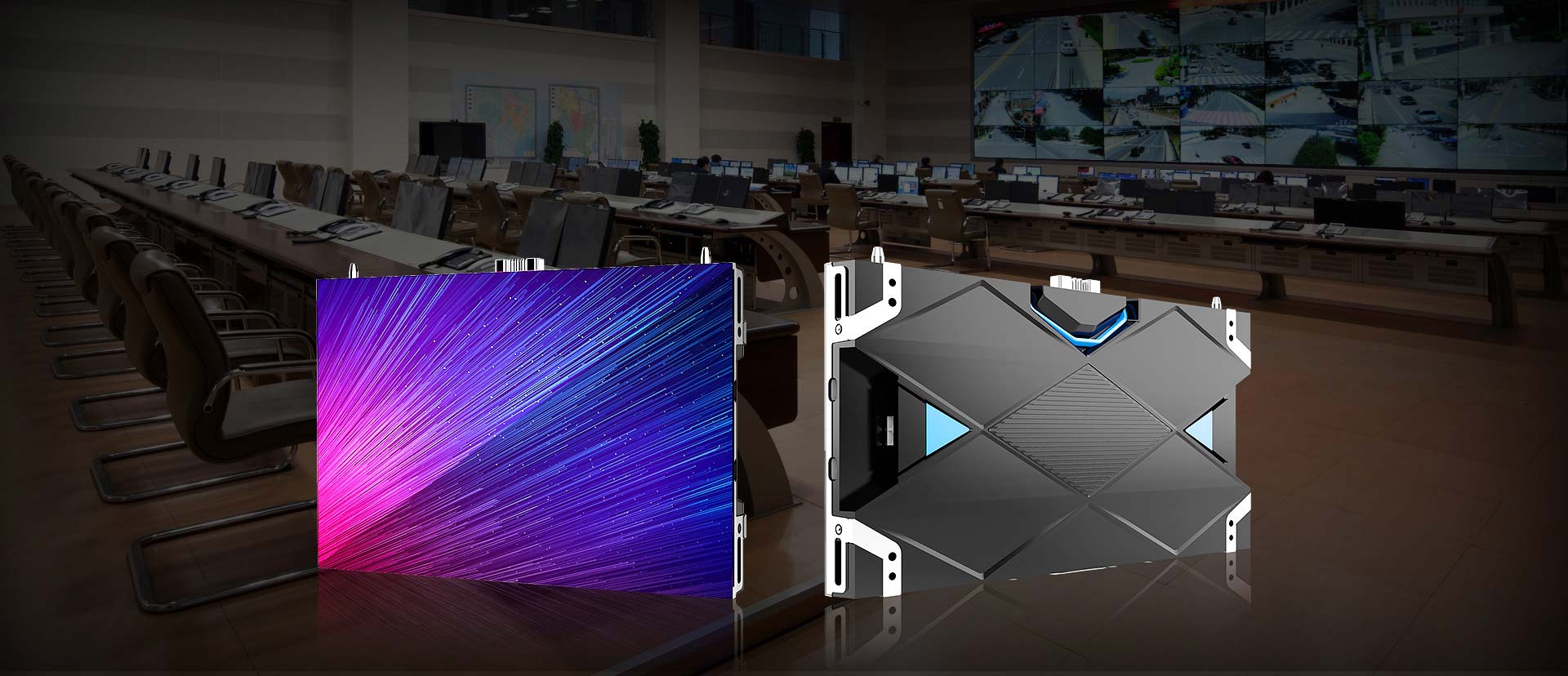

Product Appearance
  • Trillion Color

  • HDR sharp quality

  • Energy saving

  • Slim into the wall

  • Ultra light

  • Flexible installation and maintenance

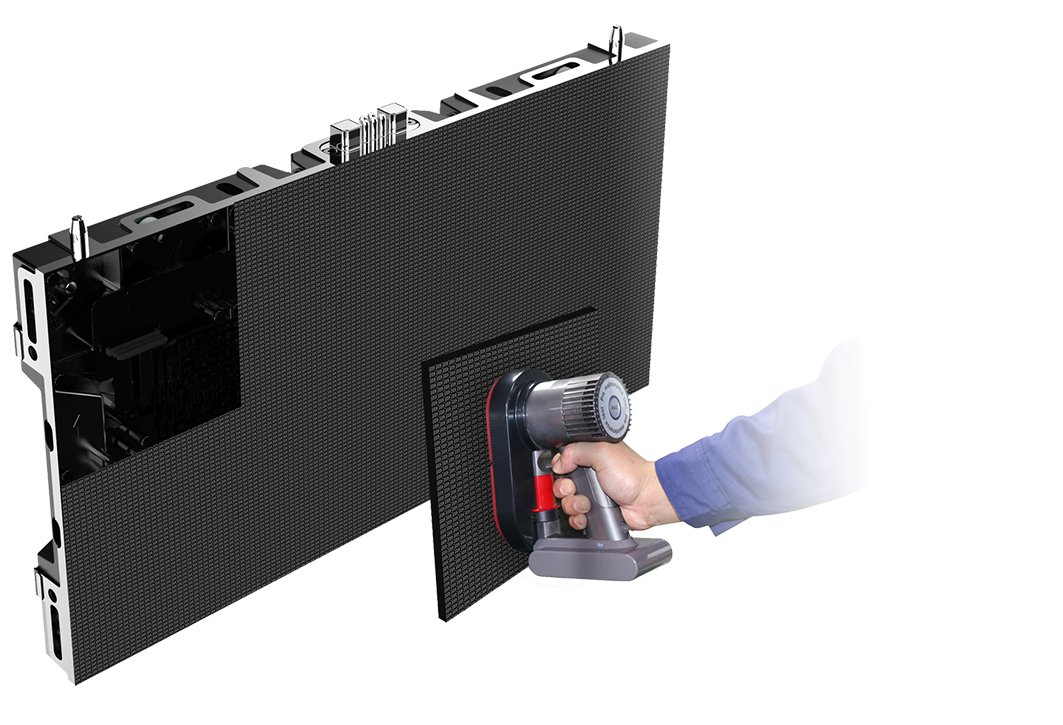

Fully front maintenance

Front service design ,faster maintenance and replacing within 5 seconds。

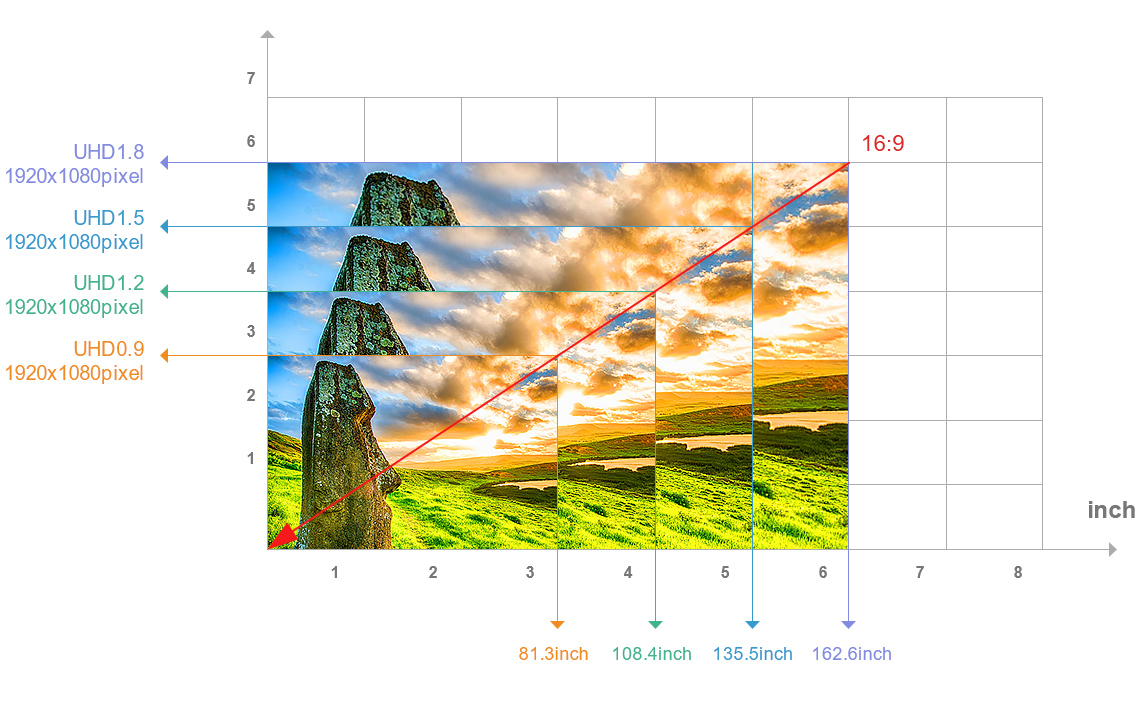

UHD 2K/4K/8K

High Definition Point-to-Point Reduction

HDR high dynamic digital image technology, more realistic restore the screen display effect
Synchronization technology

high-speed motion picture stitching without misplacement

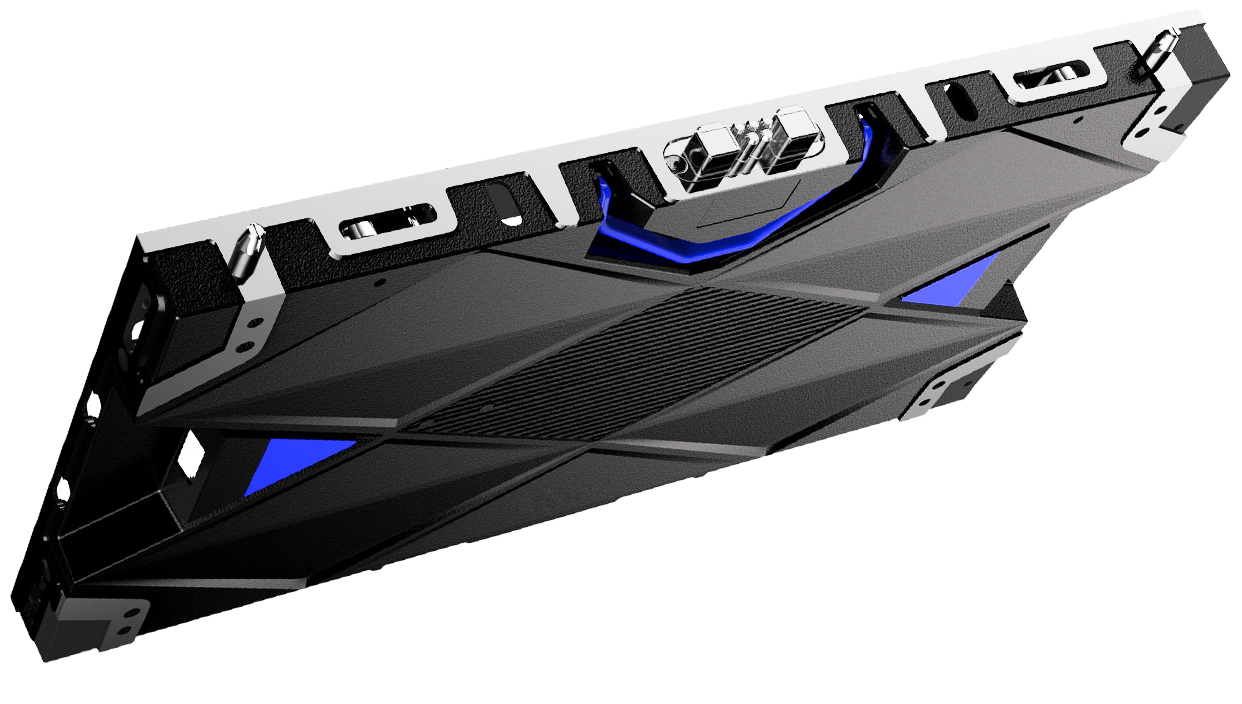

Thin and light design,only with 6.5kg per cabinet ,and 45mm thickness

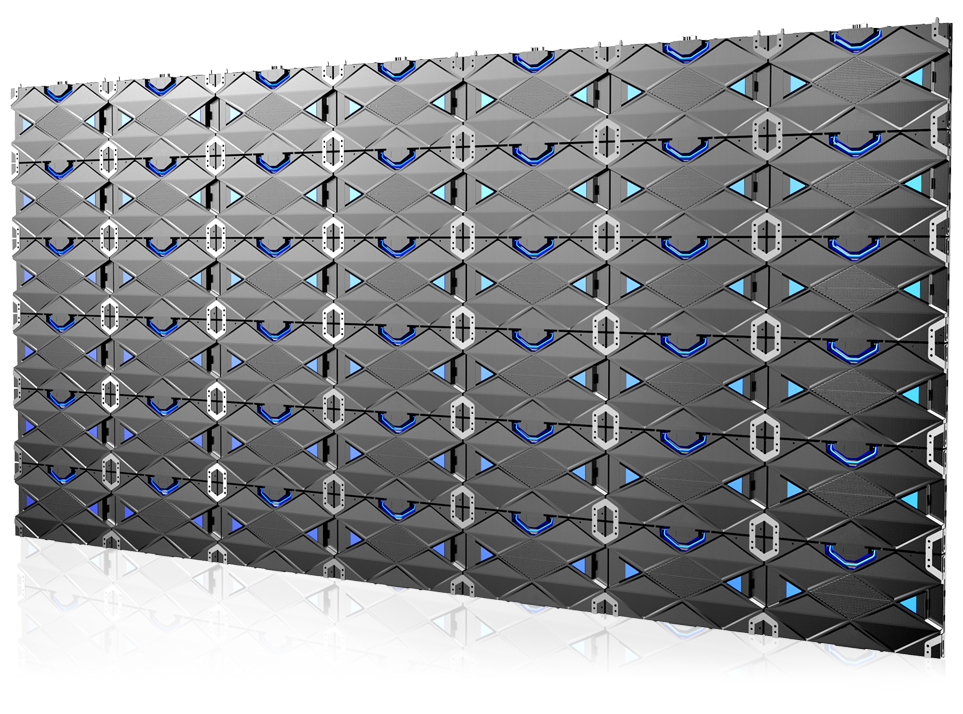

High -quality CNC aluminum die-casting ,achieving seamless splicing and installation
Dual signal&power supply standby,ensure 7*24 hours uninterrupted working

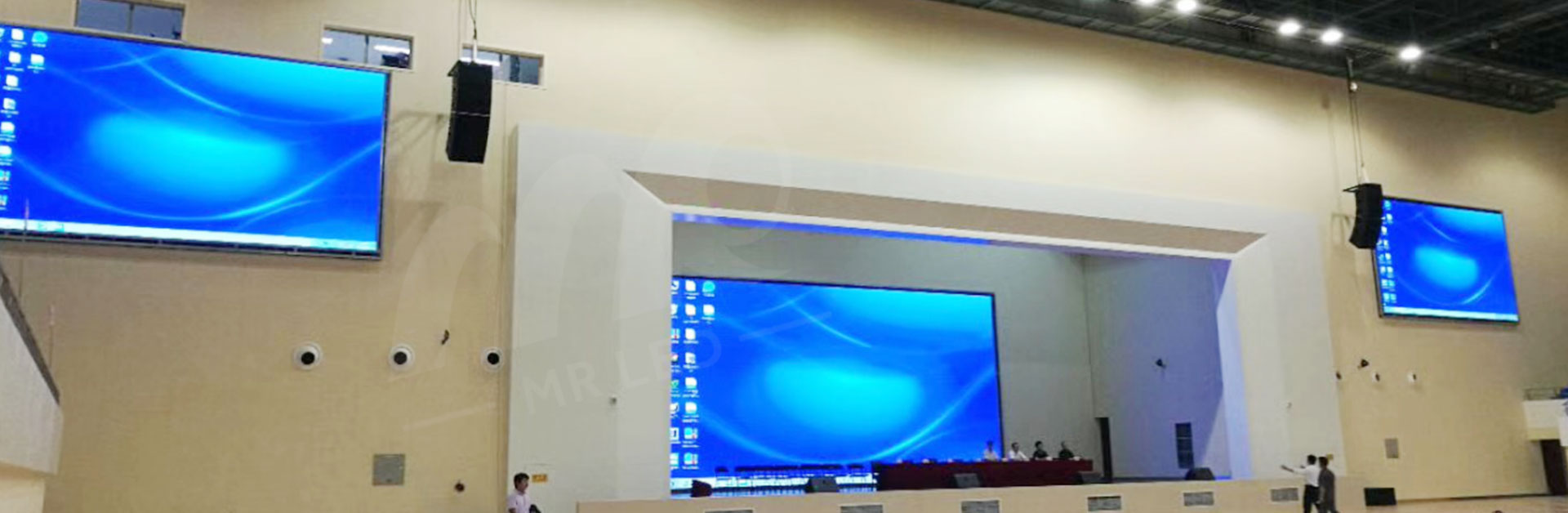

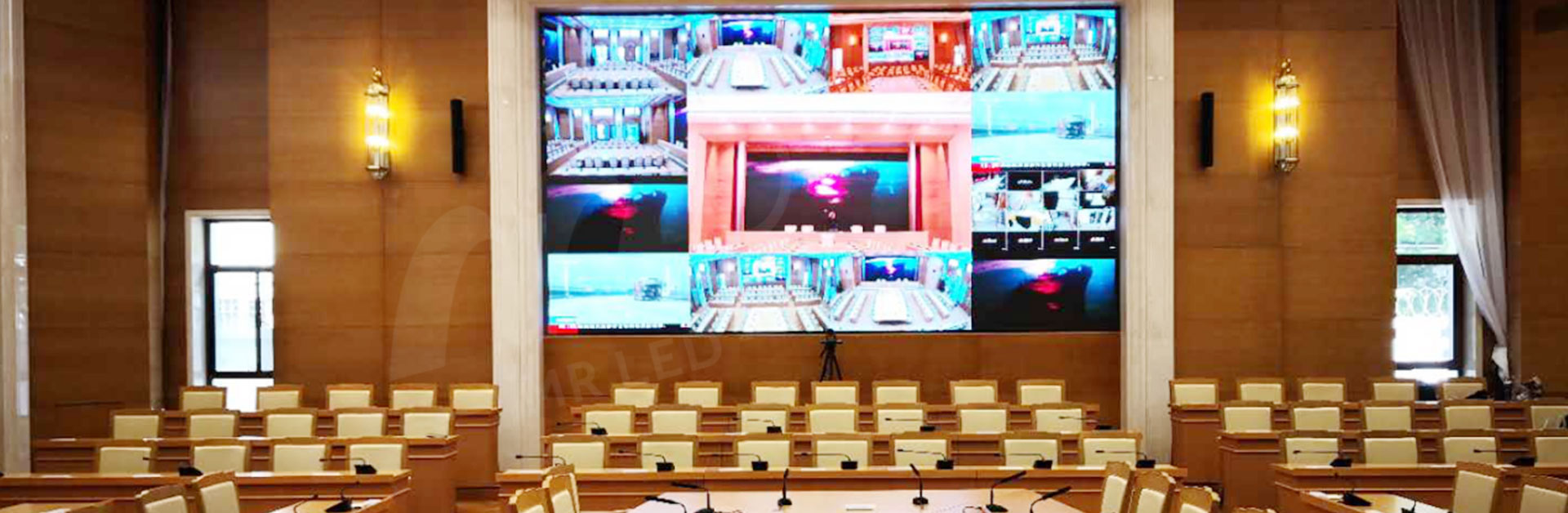

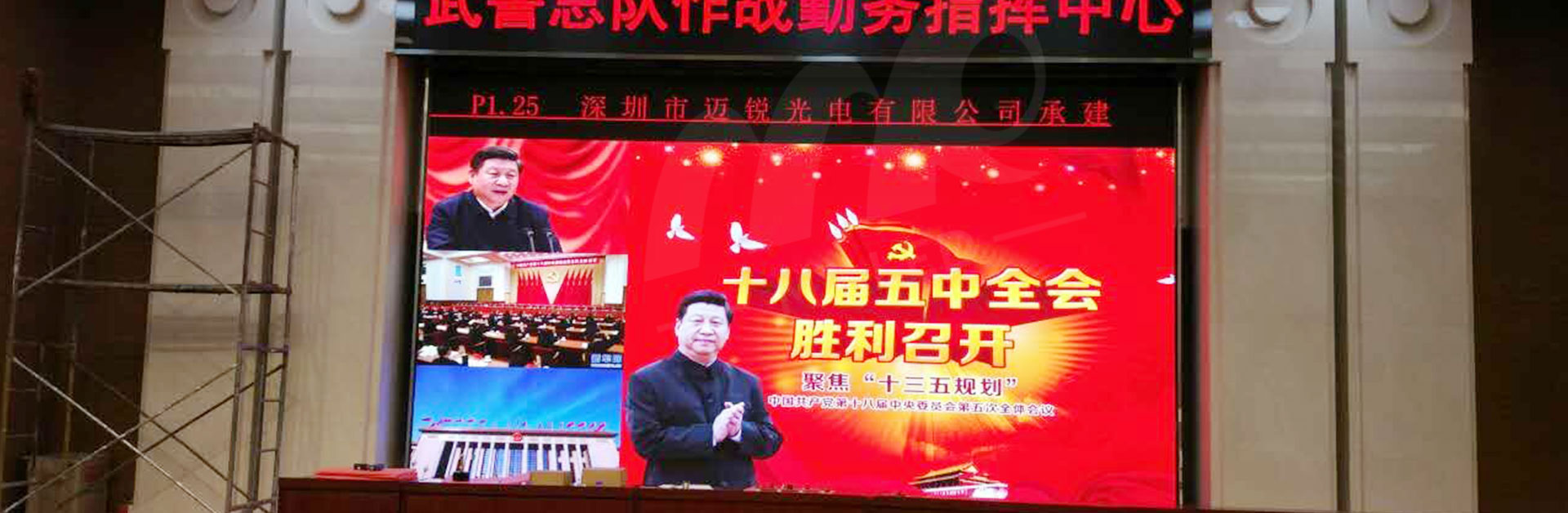

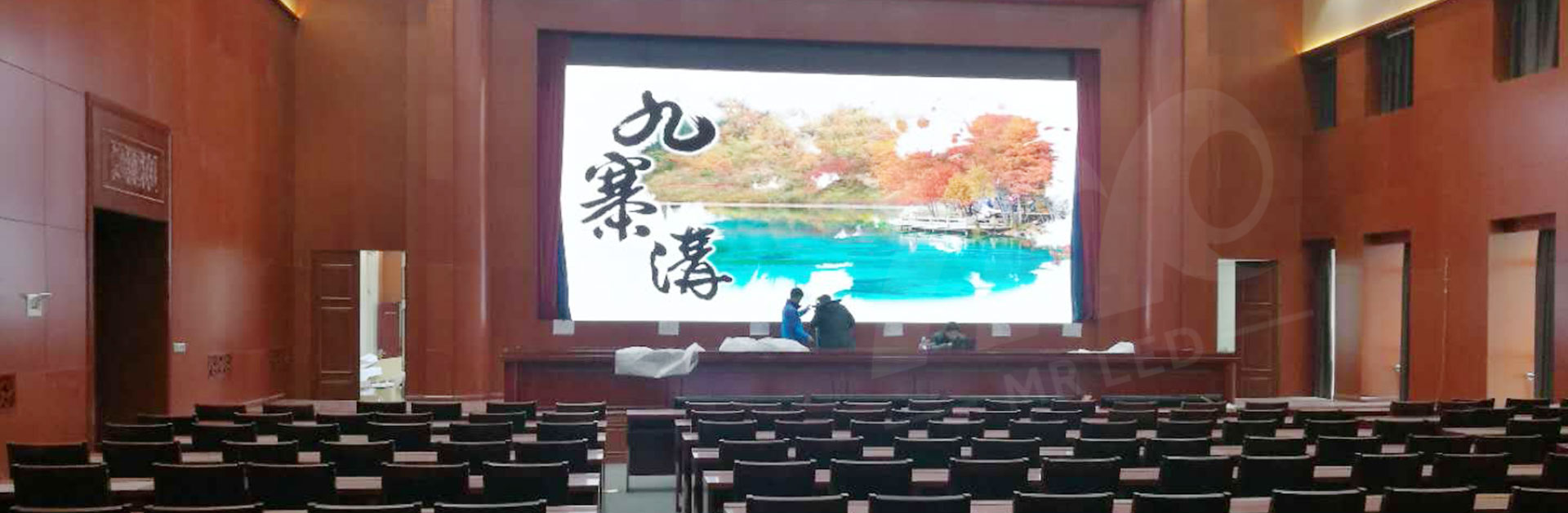

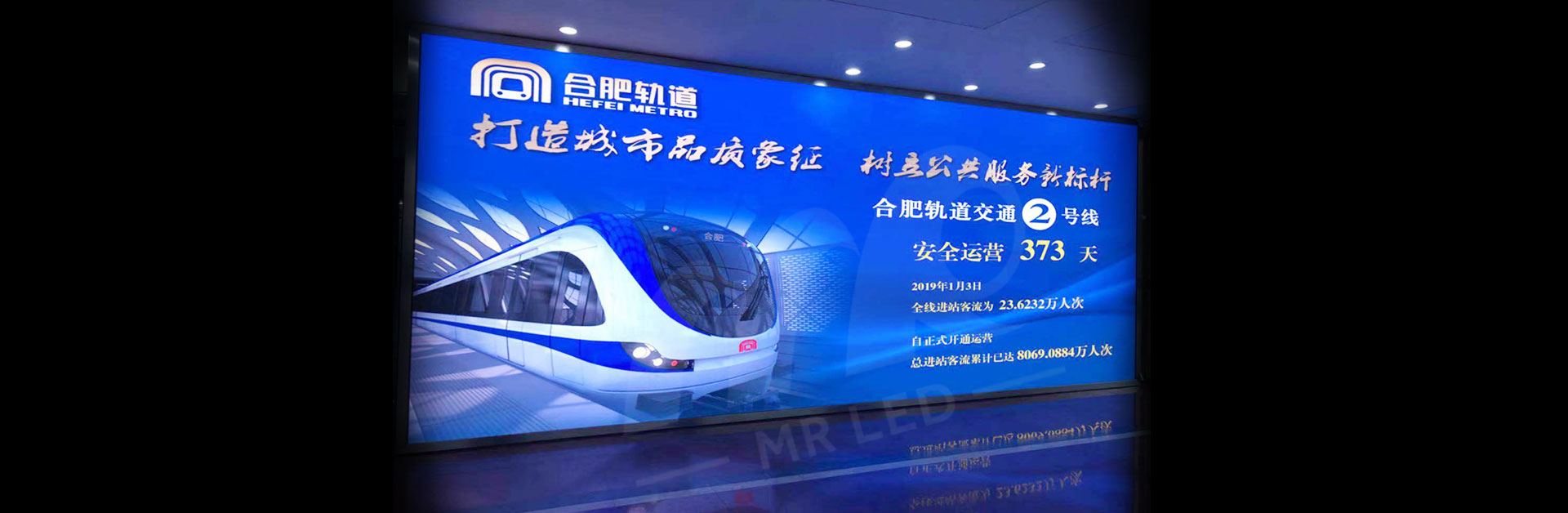

Application

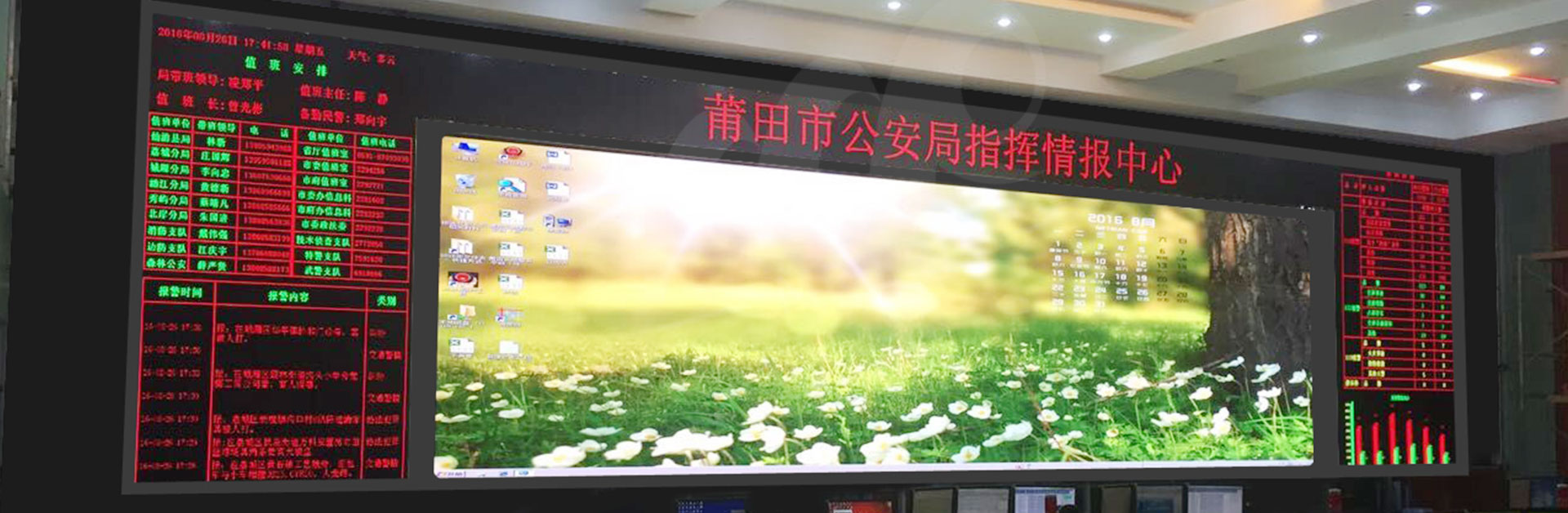

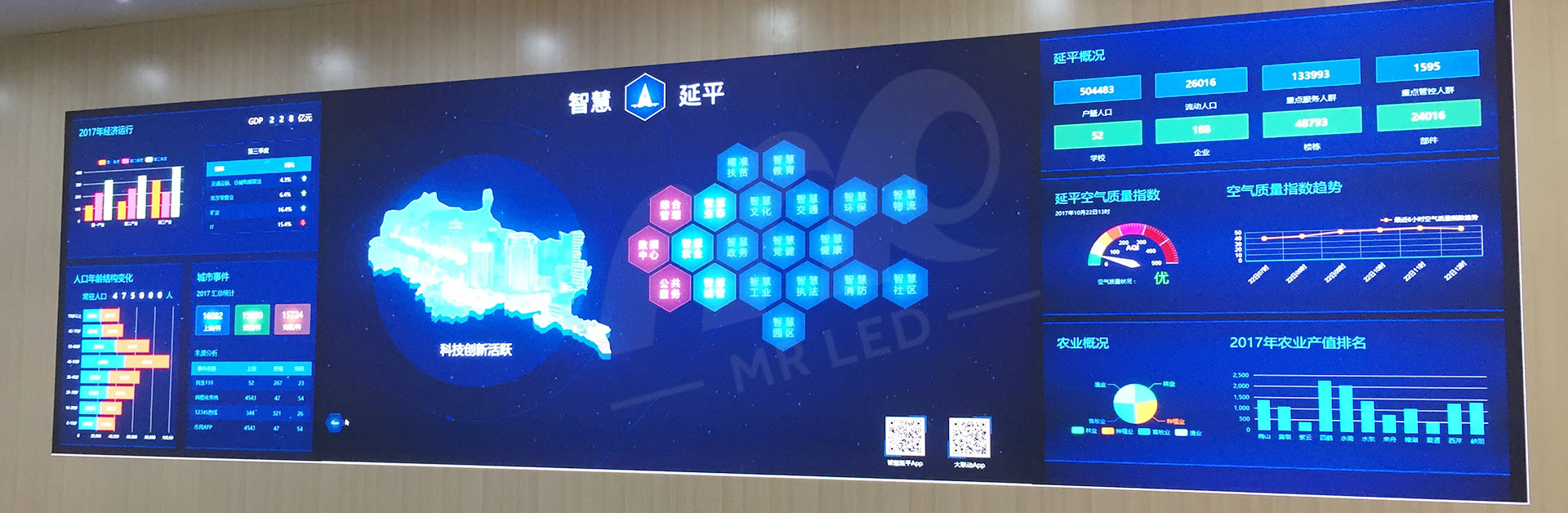

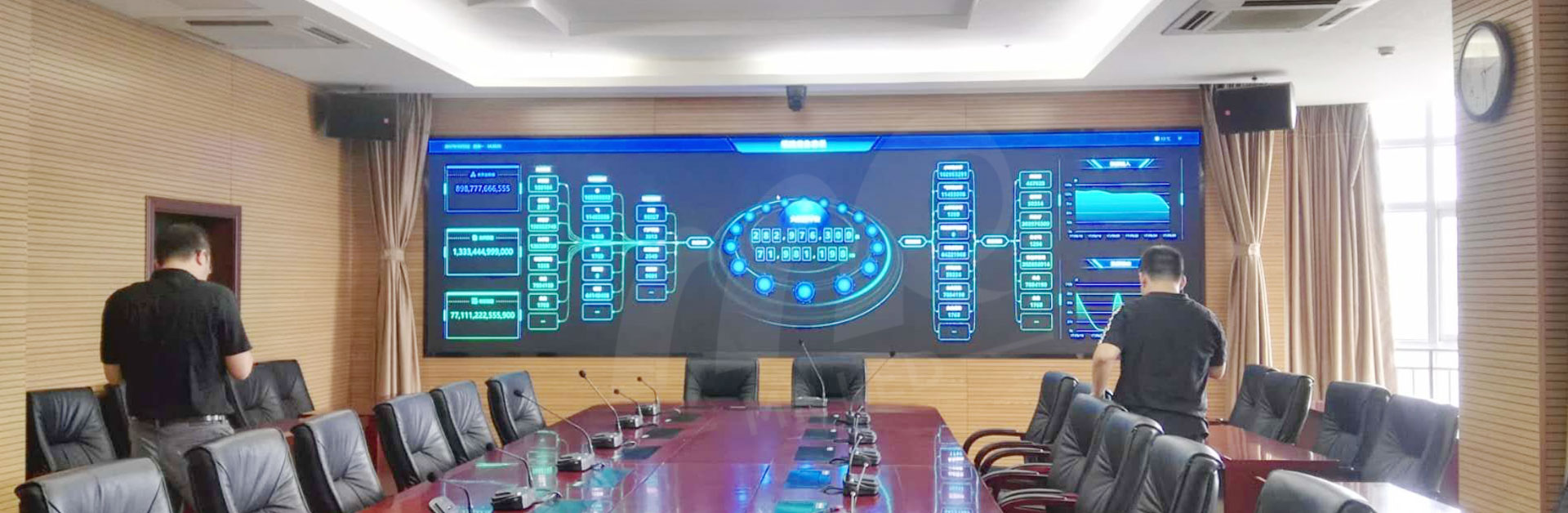

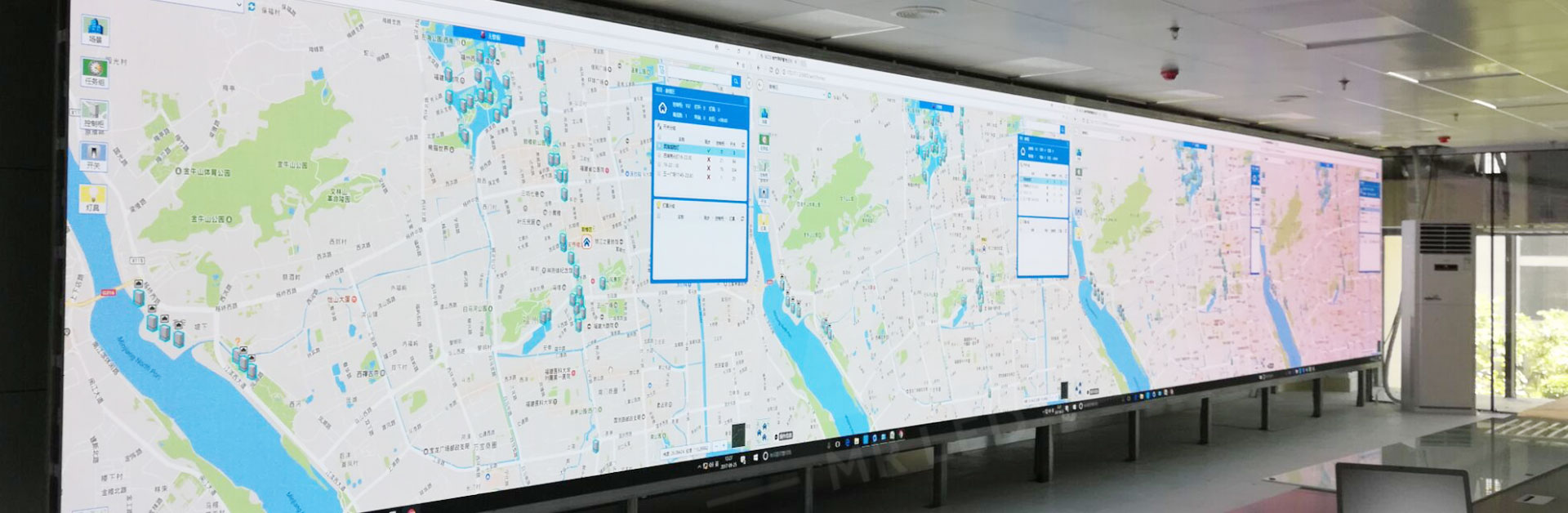

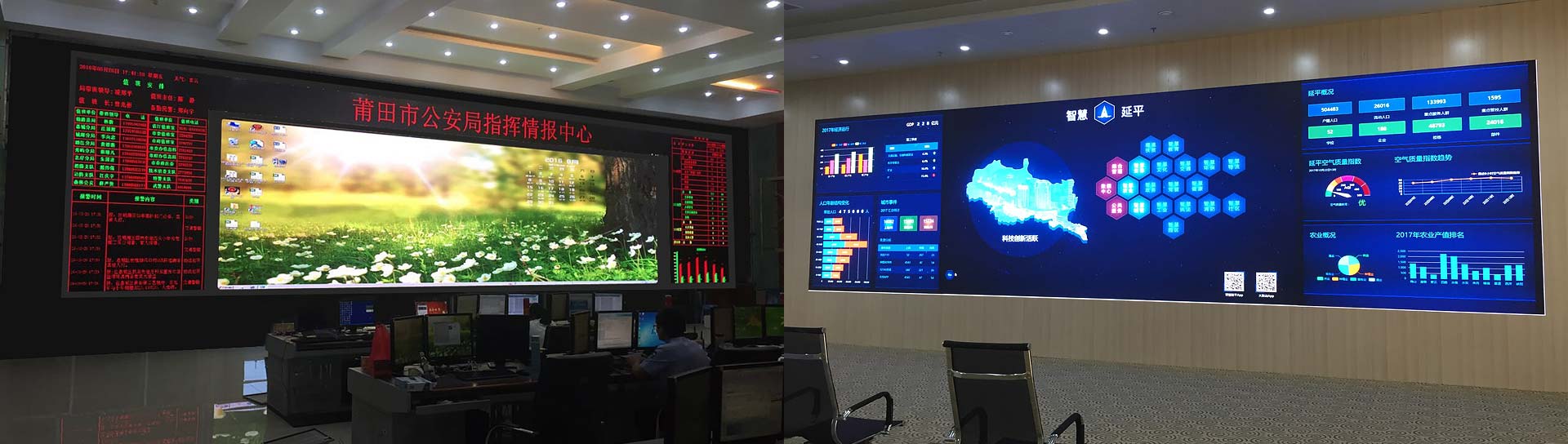

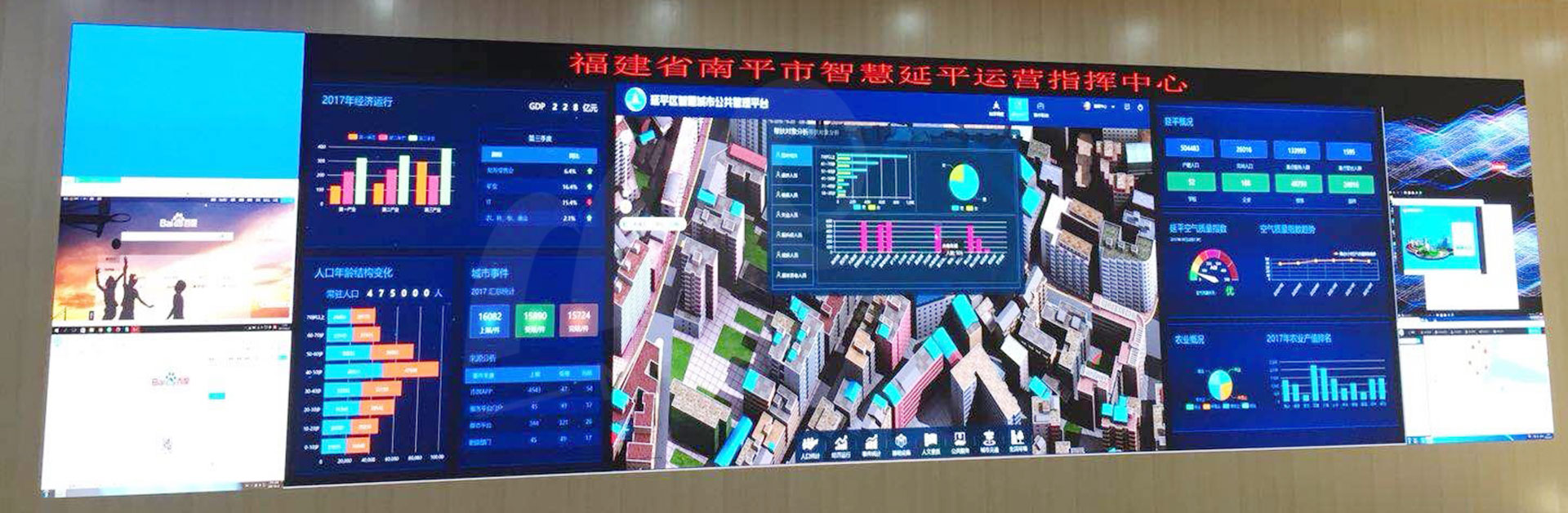

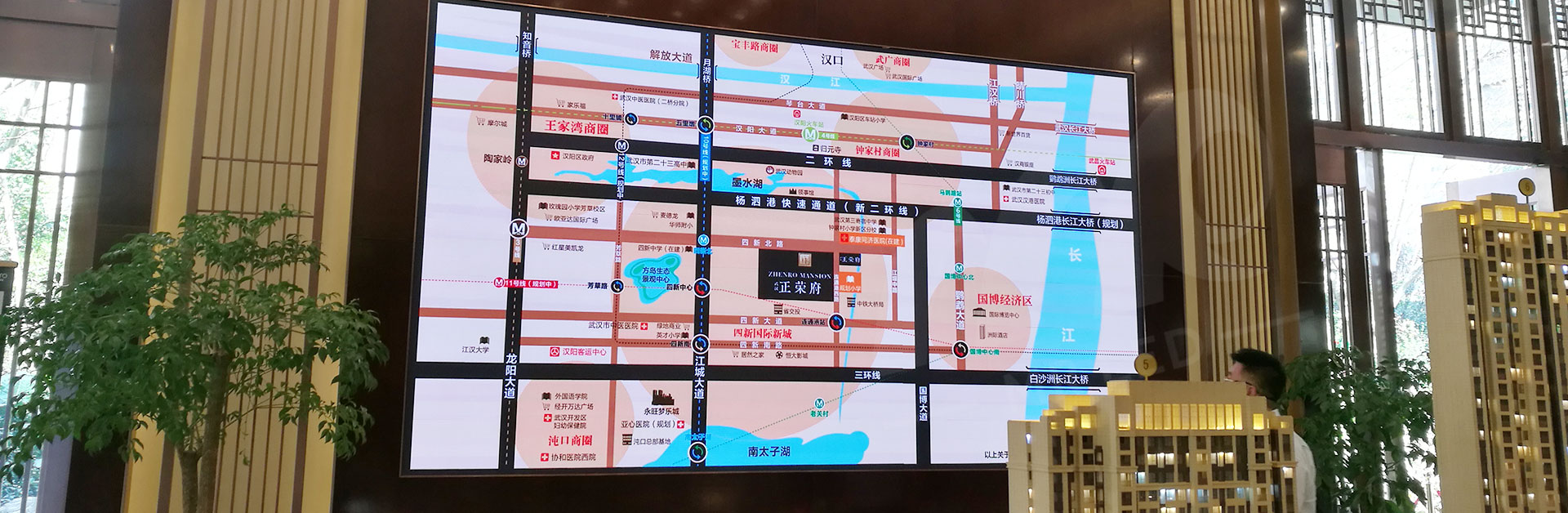

Command and dispatching system , Video surveillance, Broadcasting TV, Conference
Specifications
Model UHD 0.9 UHD 1.2 UHD 1.5 UHD 1.8 UHD 2.5
Pixel Pitch (mm) 0.9375 1.25 1.56 1.875 2.5
Brightness(nits) 0-1200 0-1200 0-1200 0-1200 0-1200
Refresh Rate(hz) 3840 3840 3840 3840 3840
Cabinet Size(mm) 600*337.5*45
Cabinet weight(kg) 6.5
Cabinet Material Aluminum
Pixel Comsumption(Max/Aver.)w/㎡ 380/150 380/150 380/150 380/150 380/150
Cabinet Resolution Pixels 640*360 480*270 348*216 320*180 2401*135
Pixel Density Pixels(㎡) 1137777 640000 409600 284444 160000
Signal Type(with video processor) AV,S-Video,VGA,DVI,HDMI,SDI,DP
Note: For more product materials, please contact us directly.
Accessopy

Front maintenance

Hexagon wrench

Left&rught connecting piece B
