Unio TV Series

Unio TV0.9 / Unio TV1.2 / Unio TV1.5 / Unio TV1.8 / Unio TV2.5

VIDEO

  • Trillion Color

  • HDR sharp quality

  • Energy saving

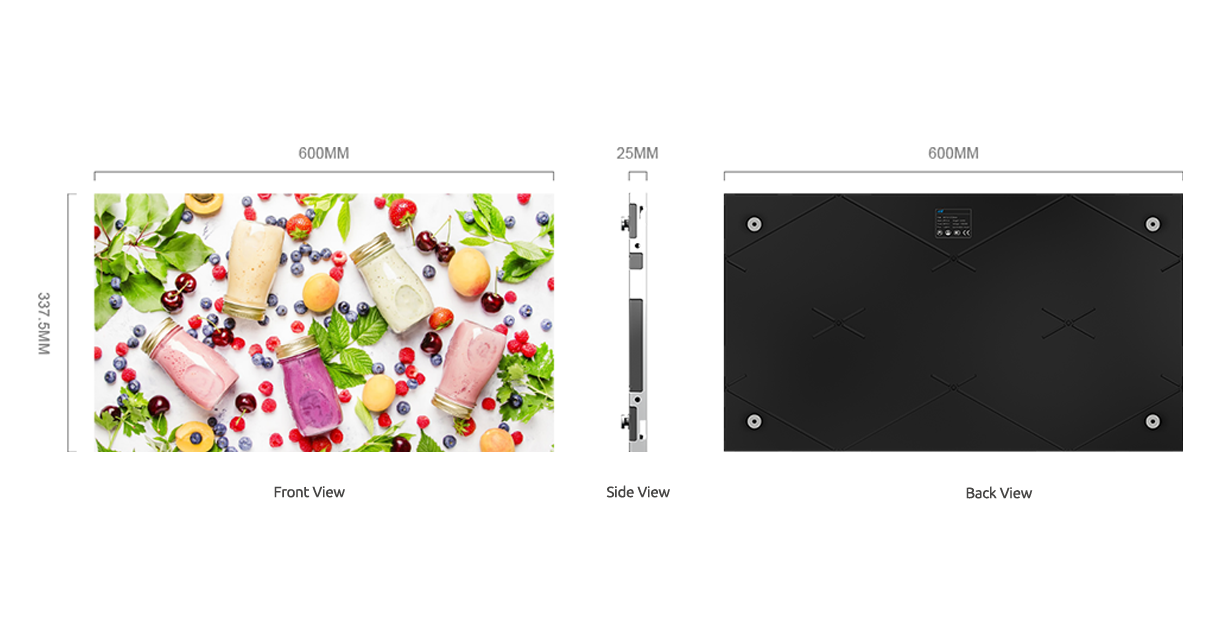

  • Slim into the wall

  • Ultra light

  • Flexible installation and maintenance

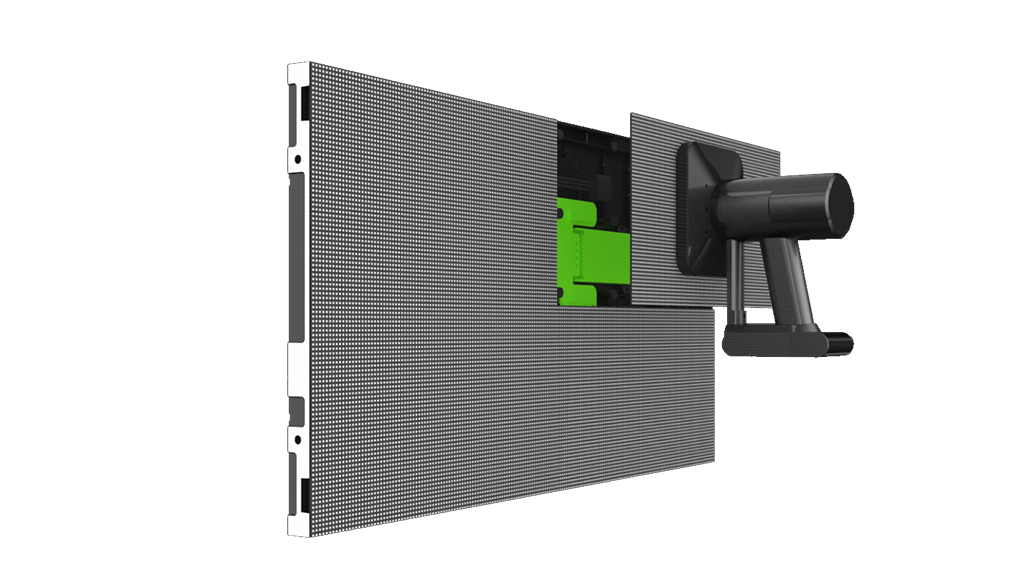

Fully front maintenance

With magnetic led module ,can be faster front -service maintenance

Unio TV 2K/4K/8K

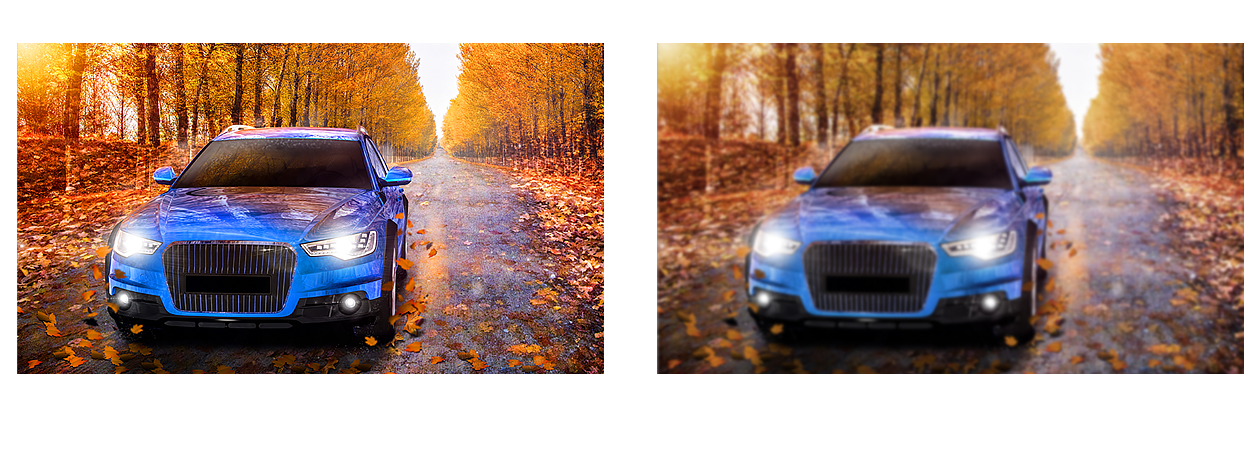

HDR high dynamic digital image technology, more realistic restore the screen display effect

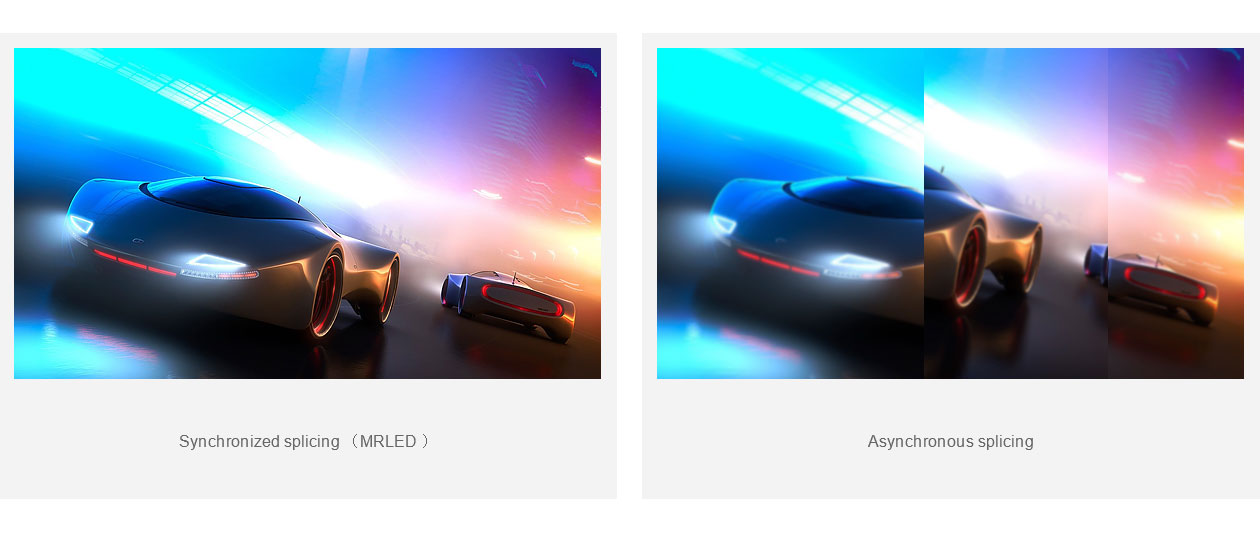

Synchronization technology

high-speed motion picture stitching without misplacement

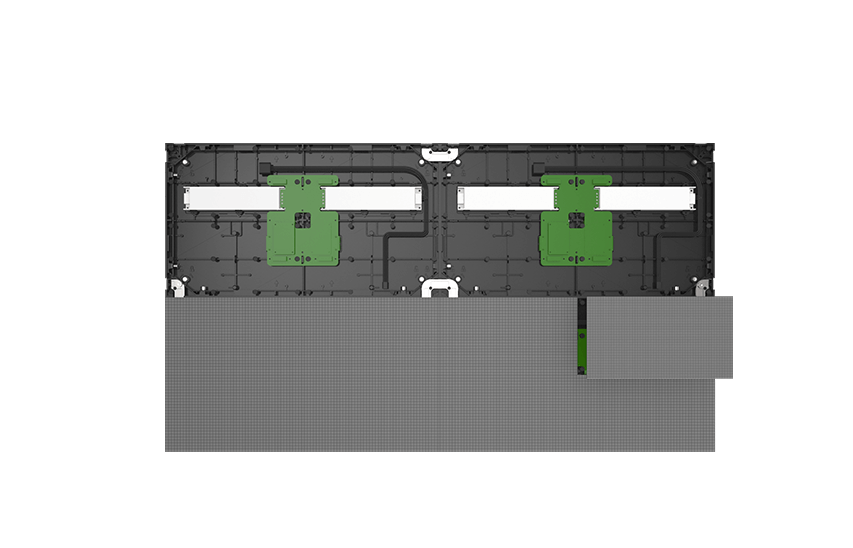

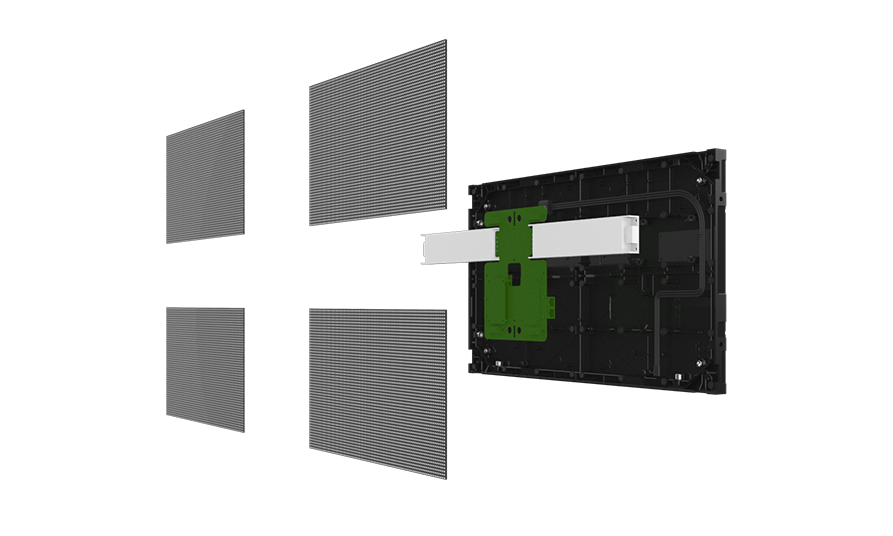

Modular Design

led module ,HUB card ,power supplier and cables can be assembled quickly and make the maintenance

Seamless Connection

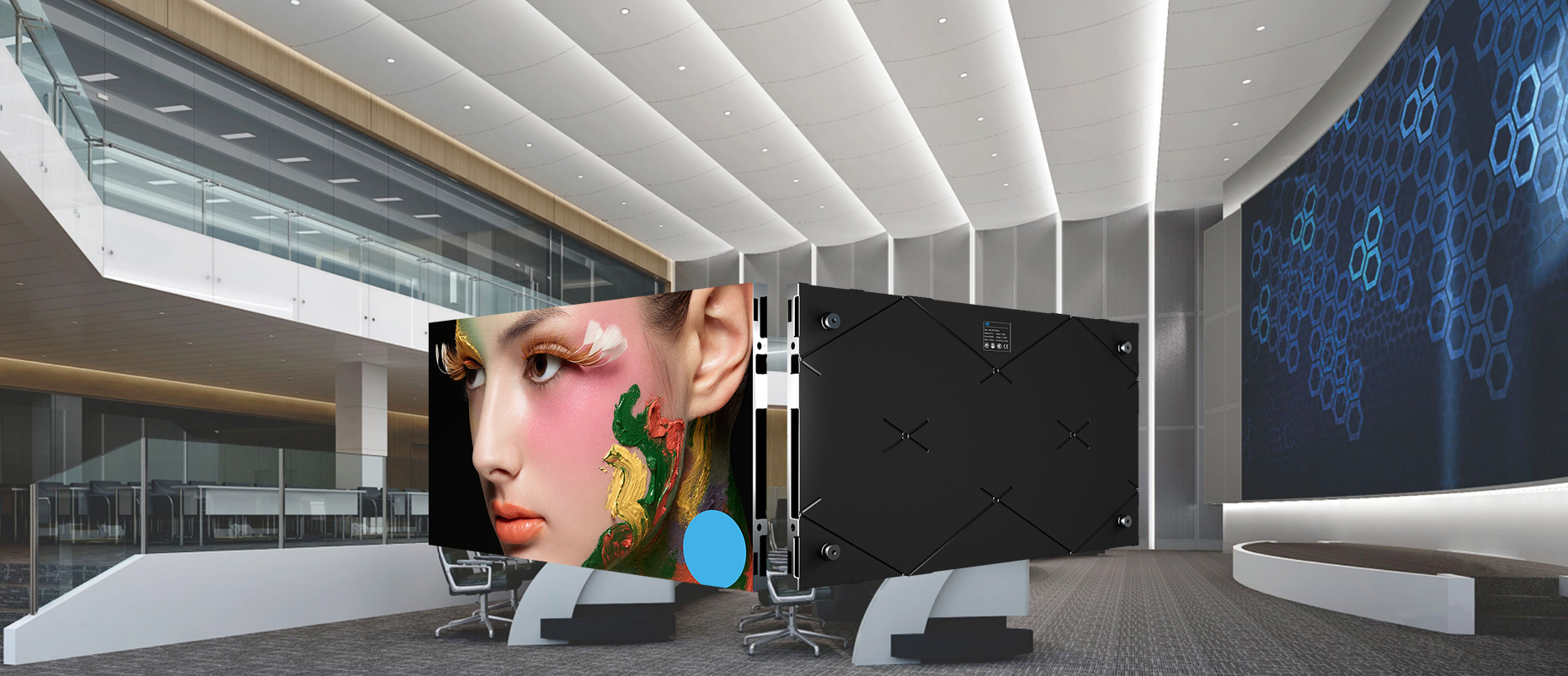

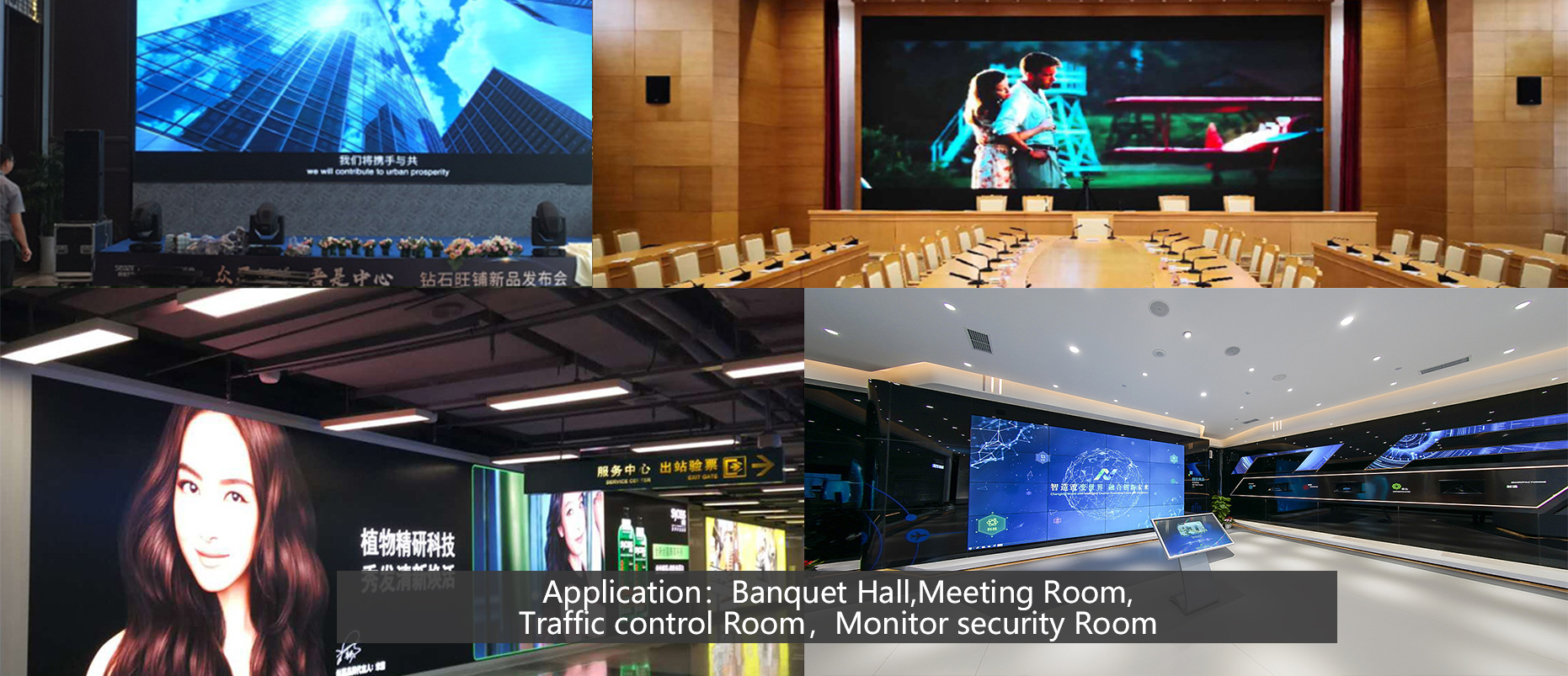

Application Scenarios
Specifications
Model Unio TV 0.9 Unio TV 1.2 Unio TV 1.5 Unio TV 1.8 Unio TV 2.5
Pixel Pitch /mm 0.9375 1.25 1.56 1.875 2.5
Brightness/nit 0-1200 0-1200 0-1200 0-1200 0-1200
Refresh Rate/Hz 3840 3840 3840 3840 3840
Cabinet Size/mm 600*337.5*25
Cabinet weight/kg 4.5
Cabinet Material Aluminum
Power Consunption(Max/Aver.)w/sq.㎡ 380/150 380/150 380/150 380/150 380/150
Cabinet Resolution  Pixels 640*360 480*270 384*216 320*180 240*135
Pixel Density  Pixels/㎡ 230400 129600 82944 57600 32400
Signal Type(with video processor) AV,S-Video,VGA,DVI,HDMI,SDI,DP
Note: For more product materials, please contact us directly.
