Pixel Pitch:2.6mm/2.9mm/3.91mm/4.81mm
Module Size: 250*250*3mm
Cabinet Size: 1000*500*45mm
Cabinet Weight: 10Kg
Super light weight 20kg/sqm and 45 mm ultra-slim design.

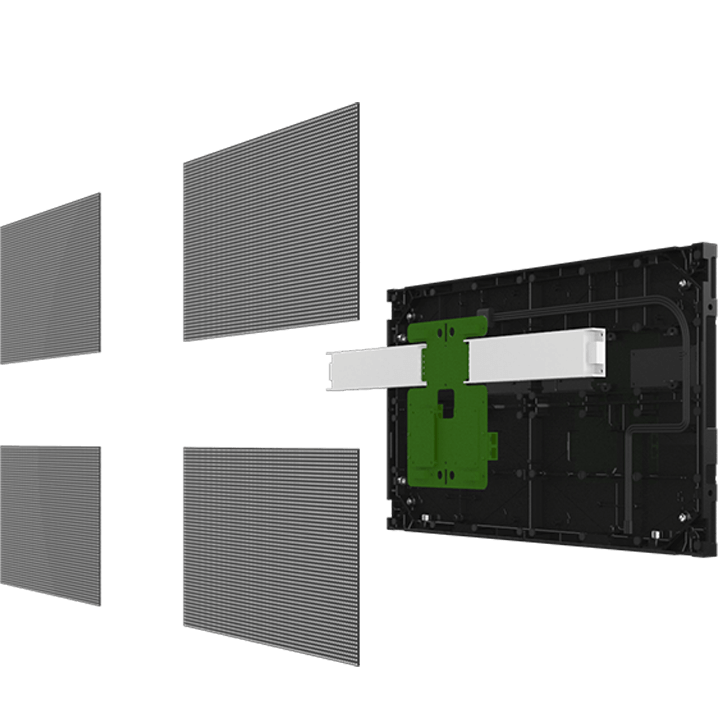

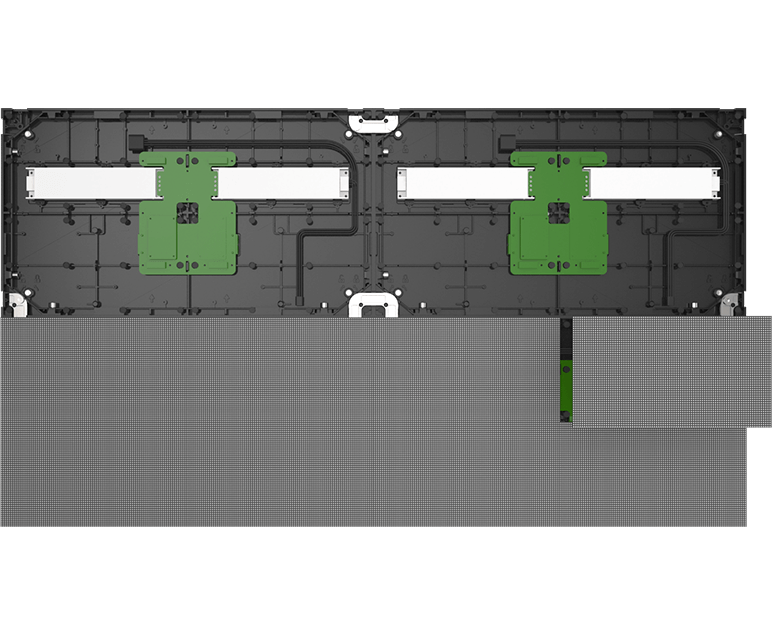

Modules without back-shell and PCB direct to cabient design helps to dissipate heat more efficiently.

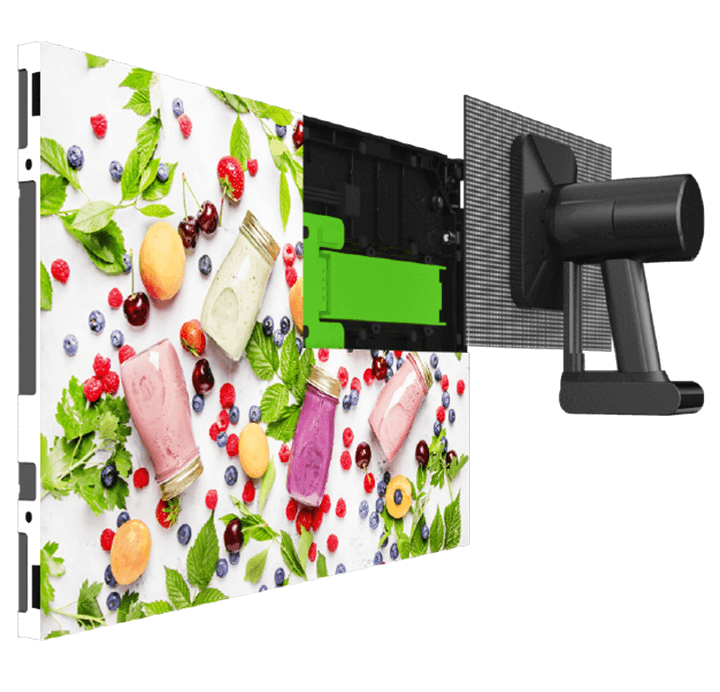

PSU+HUB+Receiving card can be maintained from front.

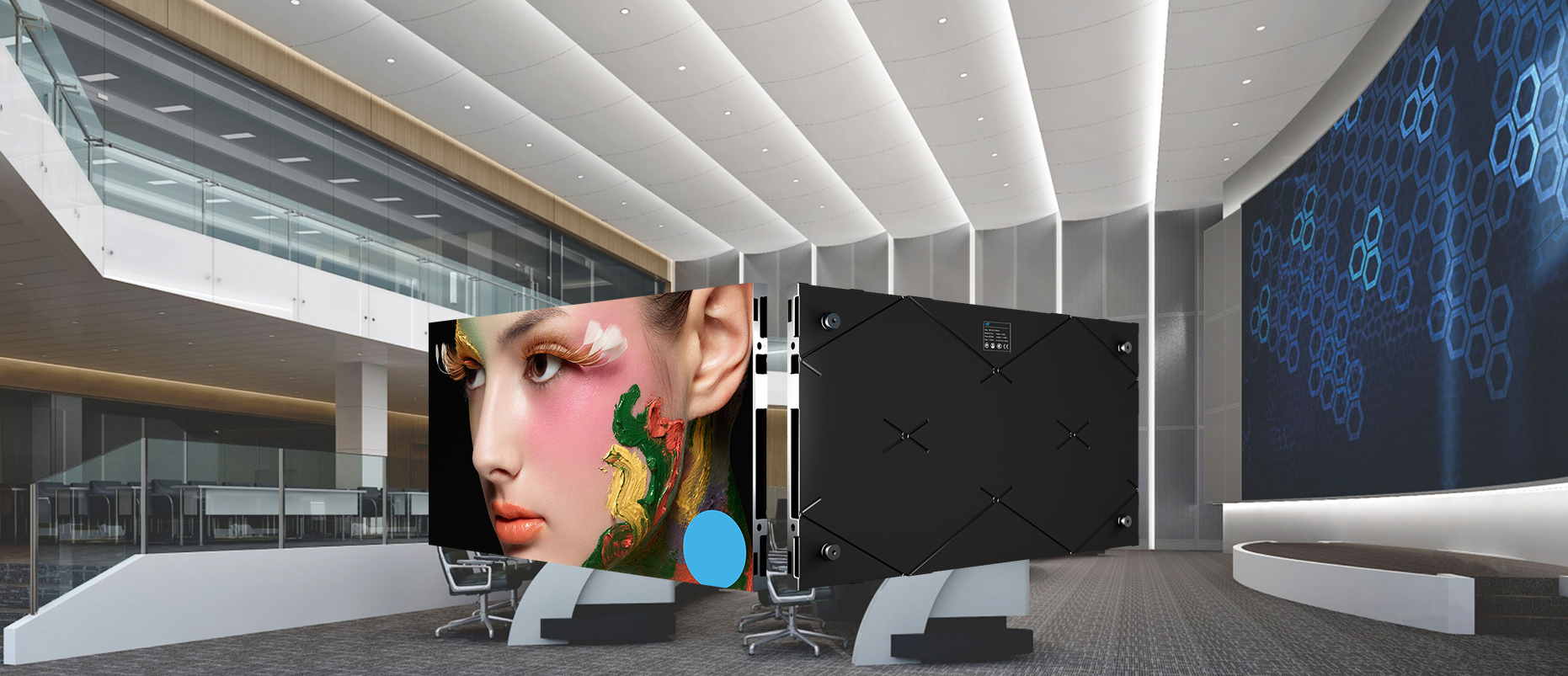

support stacking, wall mounting, hanging
45°cut-corner optional design for right angle splicing
| Pixel Pitch /mm | 2.6 | 2.9 | 3.9 | 4.81 | |
|---|---|---|---|---|---|
| Module size /mm | 250*250*3 | ||||
| Cabinet size (mm) | 1000*500*45 | ||||
| Cabinet resolution (pixels) | 384*192 | 336*168 | 256*128 | 208*104 | |
| Pixel density (Pixels/m²) | 147456 | 112896 | 65536 | 43264 | |
| Cabinet Weight（kg） | 10 | ||||
| Cabinet Materials | Die-casting Aluminum | ||||
| Brightness (Nit) | 800 | ||||
| Refresh rate (Hz) | 1920/3840 | ||||
| Gray level (Bit) | 14 | ||||
| Contrast ratio | 5000:1 | ||||
| View angle (H/V) | 160°/120° | ||||
| Power consumption (Max/Aver.w/m²) | 450/150 | ||||
| Input voltage（V） | 100-240 | ||||
| Working tempreature | -20℃-50℃ | ||||
| Working Humidity | 10%R-95%RH | ||||
| Signal type | DVI/HDMI | ||||
| Control distance | Cat-5 lan cable:<100m; single-model fiber cable:<10km | ||||
