FS Series

FS-QE&FS-QR

VIDEO

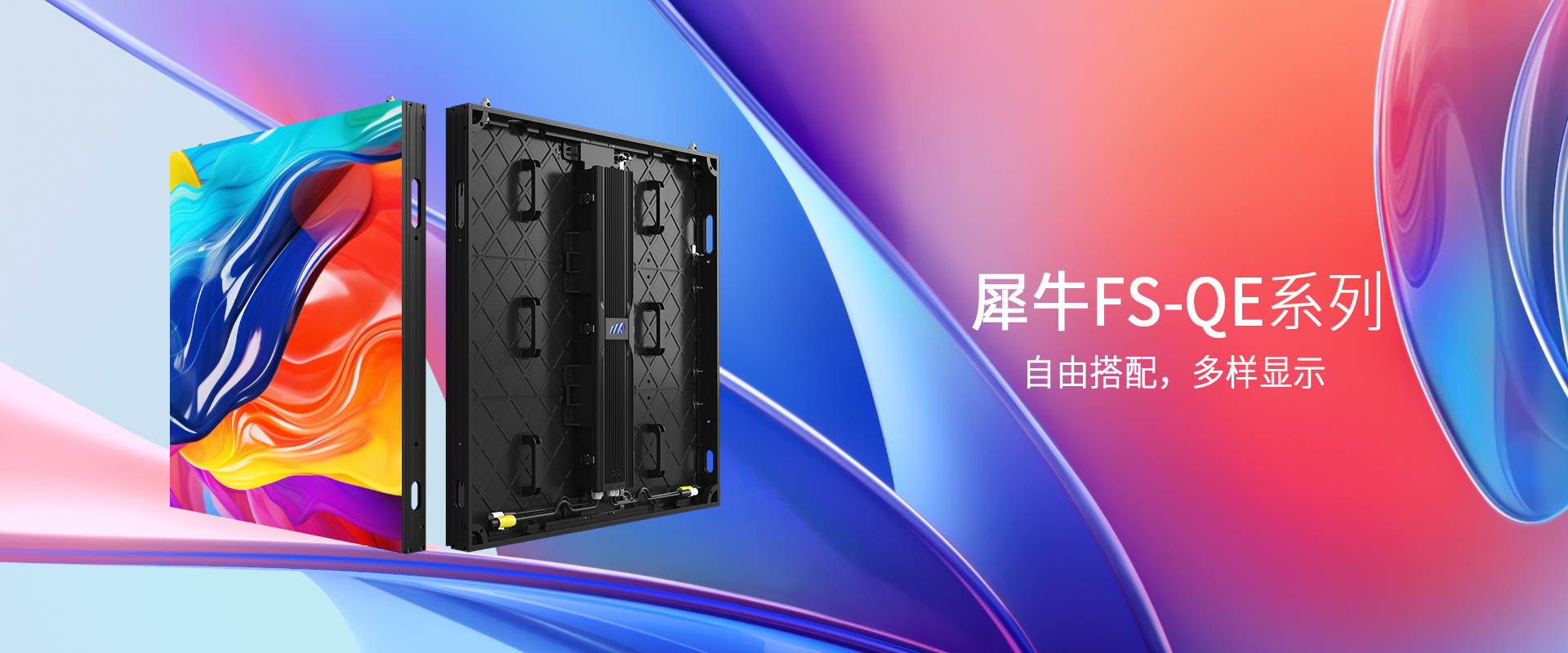

FS Series FS-QE&FS-QR

Pixel Pitch:5.71mm/6.66mm/8mm/10mm

Module Size: 480*320*19.5mm

Cabinet Size: 960*960*97mm

Cabinet Weight: 29


Ultra-High brightness, can reach 10000nits,image visible under direct-sunlight.Energy-saving design,lower power consum- ption, save operating expenses

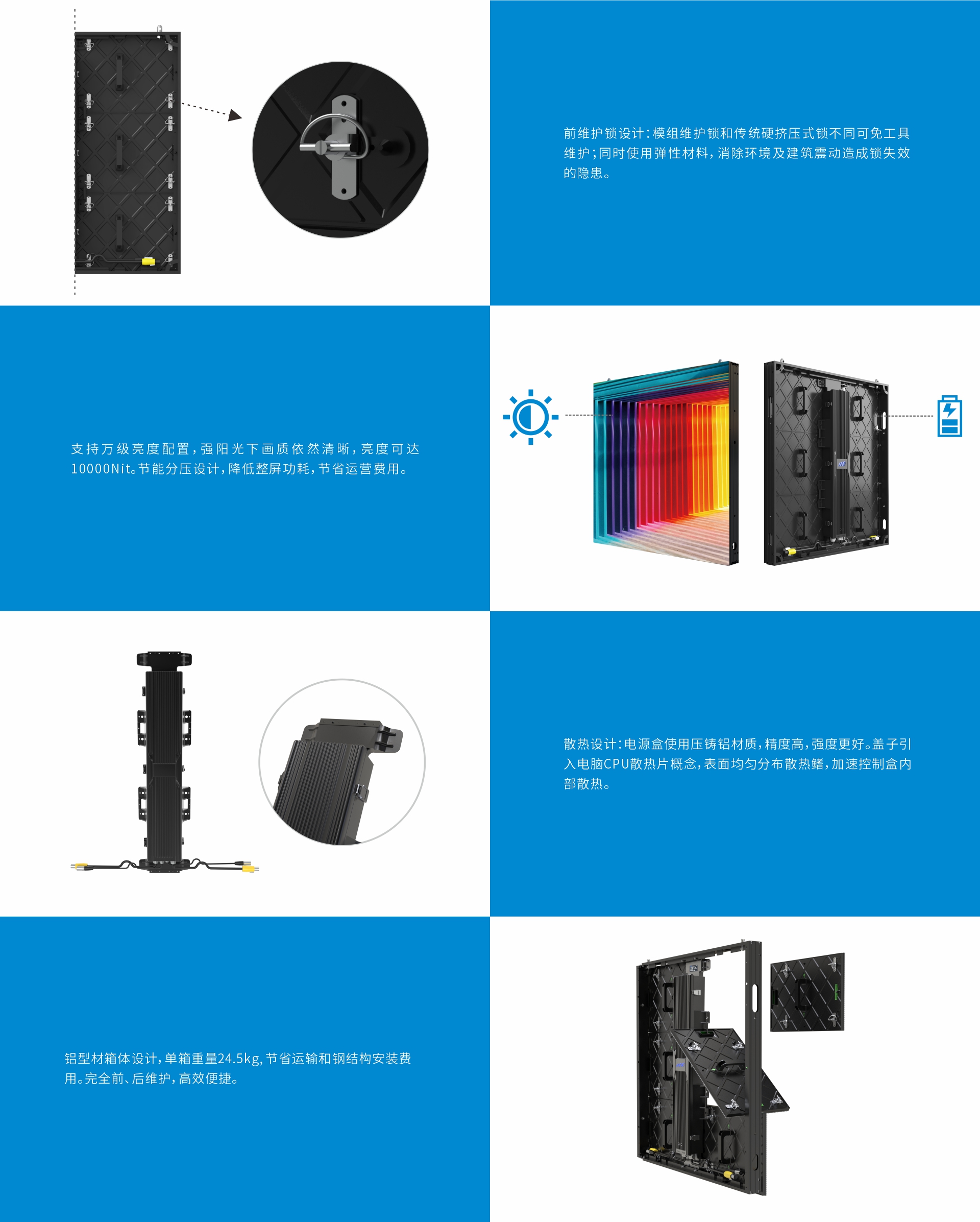

Module back-shell with CNC Aluminum mater-ials, high flatness, excellent heat dissipation, longer lifespan



Aluminum profile cabinet frame, ultra-light weight:29kgs/pcs, save transportation cost and structure cost.
 Front service Maintenance, save installation space and labor-cost

Matched curve and corner solution optional, meeting with more installation requirements perfectly


Application
Specifications
Pixel Pitch /mm 5.71 6.66 8 10
Module size /mm 480*320*19.5
Cabinet size (mm) 960*960*97
Cabinet resolution (pixels) 168*168 144x144 120x120 96x96
Pixel density (Pixels/m²) 30625 22500 15625 10000
Cabinet Weight(kg) 29
Cabinet Materials Aluminum profile+ die-casting aluminum
Brightness (Nit) 6000nits /10,000nits optional
Refresh rate (Hz) 1920/3840
Gray level (Bit) 14
Contrast ratio 5000:1
View angle (H/V) ±80°/±60°
Power consumption (Max/Aver.w/m²) 650/220
Input voltage(V) 100-240
Working tempreature -20℃-50℃
Working Humidity 10%RH-95%RH
Signal type DVI
Control distance Cat-5 lan cable:<100m; single-model fiber cable:<10km
