RS Series



RS Series R2S/R3S/R4S/R6S

Pixel Pitch:2.6mm/3.91mm/4.81mm/6.25mm

Module Size: 250*250*17mm

Cabinet Size: 500*500*90mm

Cabinet Weight: 8.5kg

Independent Modularized Design

Screwless module and control box can be installed /uninstalled within 3 seconds from front side and back side ,instant replacing and easy maintaining

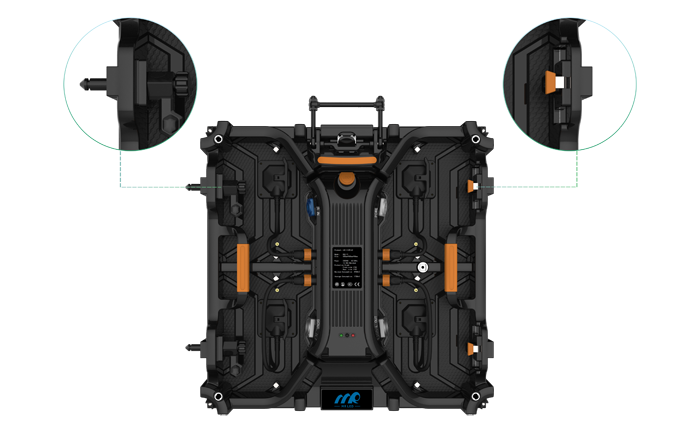

Renovated Lock System

MR 3rd generation lock system ,strong,fast and fine adjustable,designed for single person installation

Integrated Cabling Connection

Patent cabling system integrating both power and signal cable ensures IP67 waterproof,shockproof and stable cabling connection between module and control box

Single integrated connector,reducing 90%failure less than traditional flat cable

Full Installing Structure Slotution

Installing LED display becomes a simple job by our ancillary structure such as standing/hanging bracket,bracket support beam,etc

Innovative Intelligent LED Display

Each module is integrated independent I/O CPU,making LED display smart

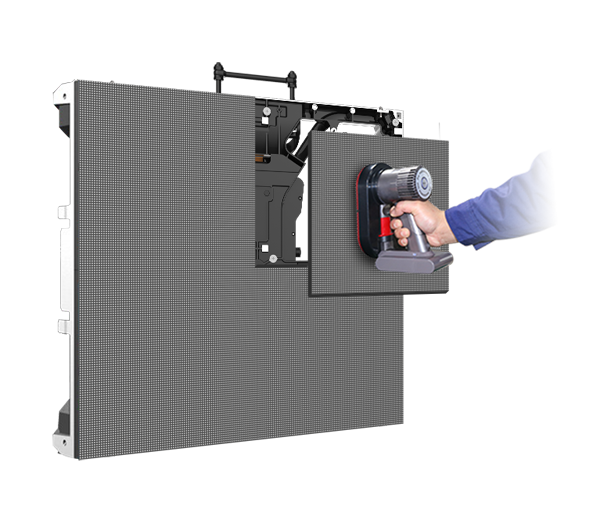

Fulll Front maintenance

Any module can be magnetically moved from the front,which is more faster and more convenient to maintain.The maintenance speed is more than 5 times higher than the traditional products which greatly shortens the maintenance time for customers.

Indoor and Outdoor dance evenings ,Spring festivals ,Conferences,Exhibitions,etc, Multifunctional Rental LED to meet different event requirements
Model R2S R3S R4S R6S
Pixel Pitch(mm) 2.6 3.91 4.81 6.25
Brightness(nits) ≤800 ≤1000 ≤4800 ≤5000
Refresh Rate(hz) ≥3920 ≥3920 ≥3920 ≥3920
Power Consumption(Max/Aver)W/m 490/170 470/120 500/175 500/175
Cabinet Size(mm) 500*500*90 500*500*90 500*500*90 500*500*90
Cabinet Weight(kg) 8.5 8.5 8.5 8.5
Pixel Density(Pixel/m) 36864 16384 16384 10816
Module Dimension(mm) 250*250*14.6 250*250*14.6 250*250*14.6 250*250*14.6
Note: For more product materials, please contact us directly.

Hanging bracket

Rear Bridge

Hanging bar

Stacking bar
